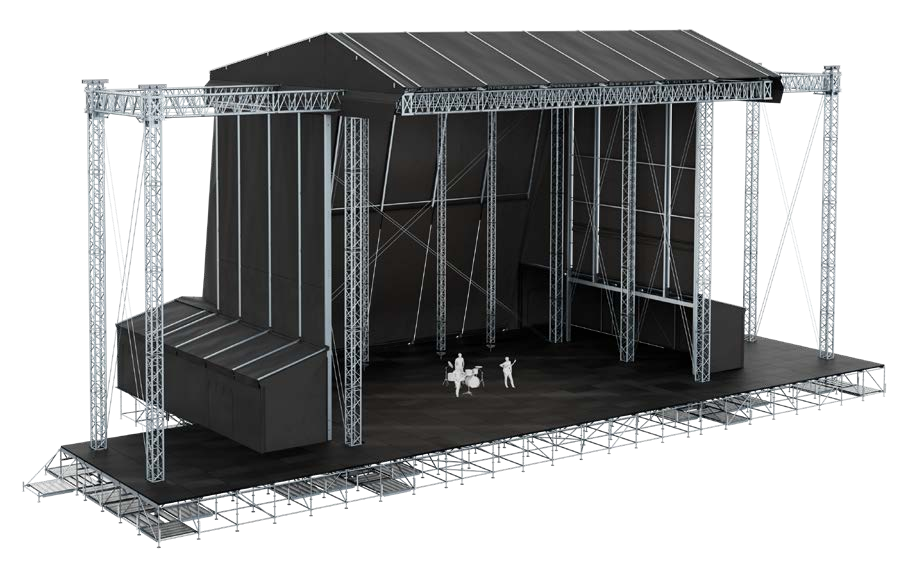

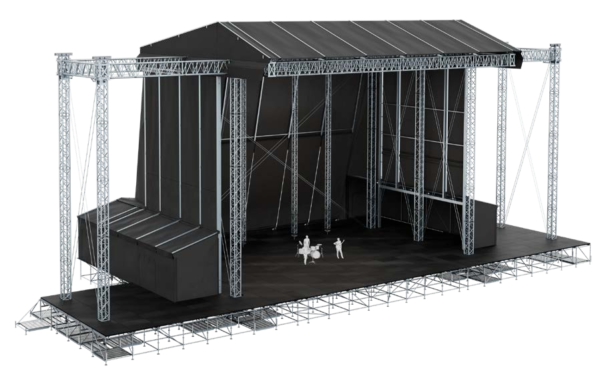

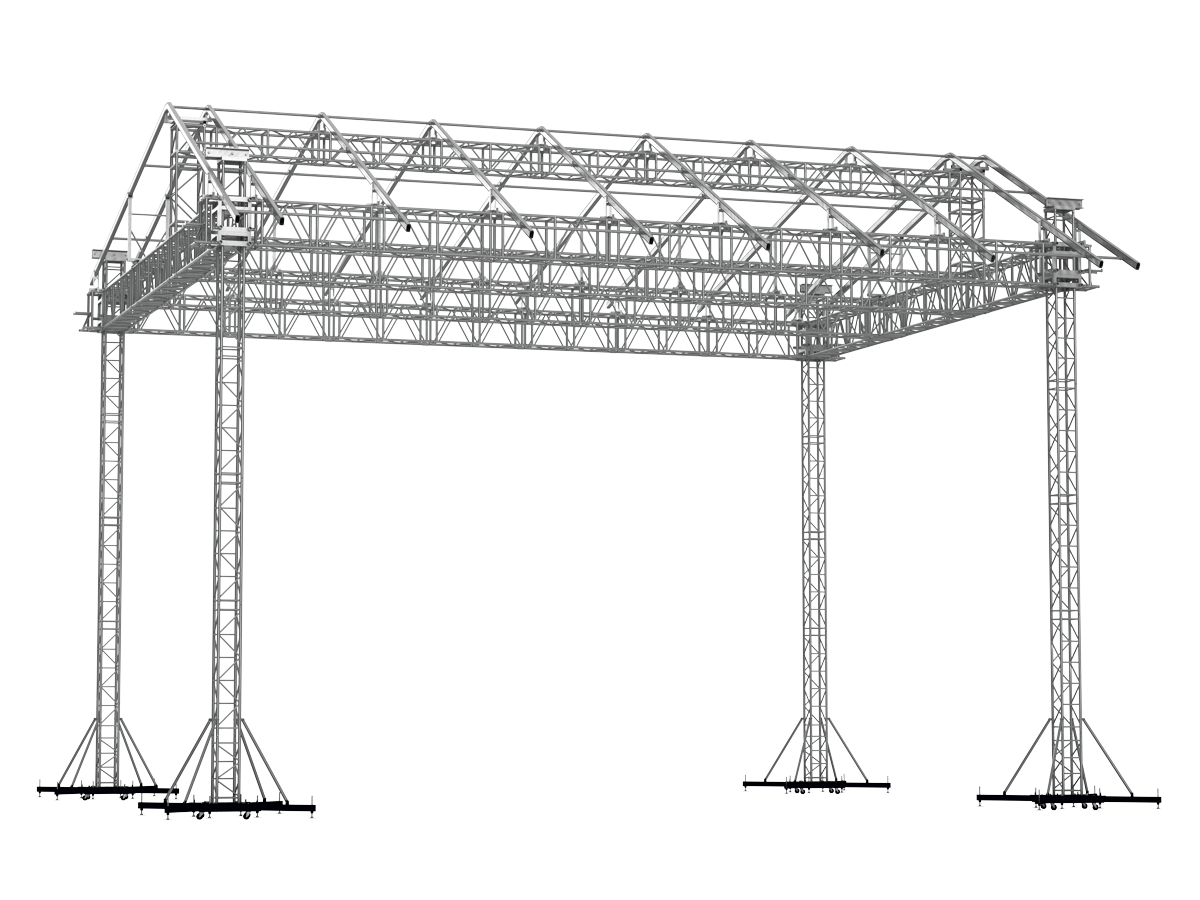

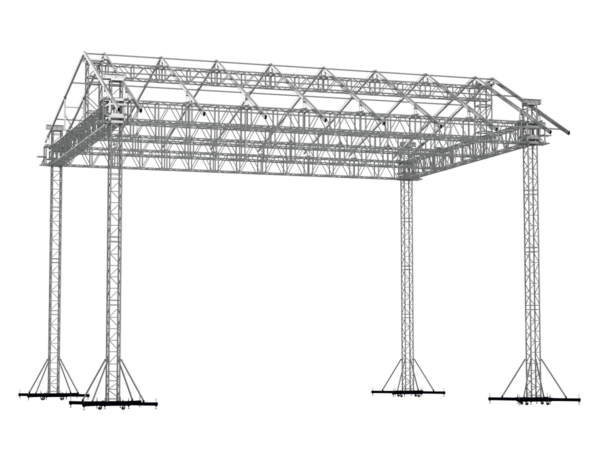

AR65

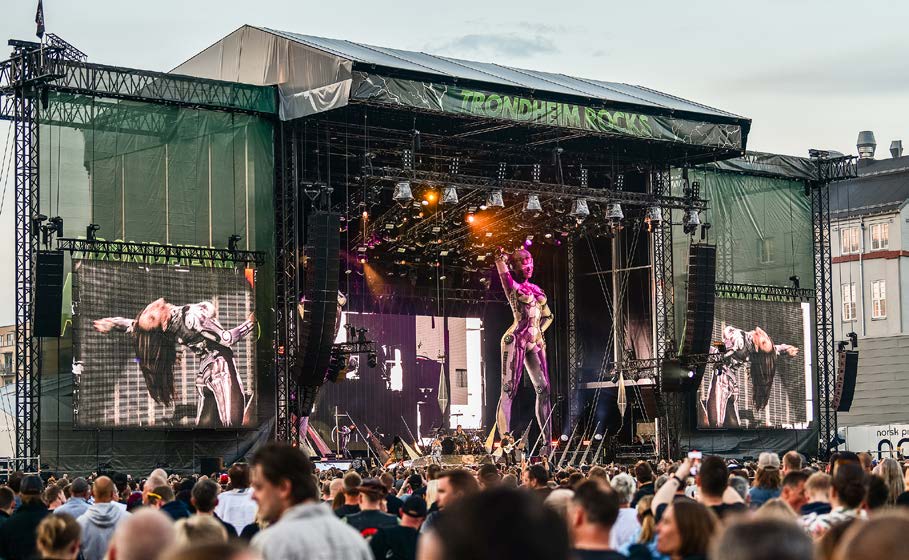

Our very first Pitch Roof system revolutionized the festival industry as a suitable alternative to steel roof systems. Based on standard MS/PS Truss and LL45S towers, this roof marked the beginning of our success in pitch roofs. The AR65 Roof consists of a TT Ground Support on six LL45S Towers and a Roof Structure made of special tent profiles with integrated keder rail. The AR65 Roof is a tower-based structure with a pitched roof.

Specifications of the AR65 roofs

Component	Details
Tower Structure	Six LL45S Towers integrated in Scaffolding
Main Truss	PS Truss
Spreader Truss	SS40S/SS30S
PA Pick Up Point	Integrated in Cantilever
Stage	Fully scaffolding with TIGER TRUSS Decks
Stage Entrance	Two stairs & Loading Dock
Canopies	Full PVC Roof & Walls in bags (Black / Grey)
Hoists	6x 2 Ton Hoists, 1x 8-way controller
Documentation	Structural reports & Manuals
Training	First set-up training together with Tiger Truss
Ballast	Ballast, Water Tanks, Concrete etc.
Tools & Spare Parts	Extended range of tools & spare parts

This pitched roof features a standard cantilever and a special PA Wing at the sleeve blocks of the front towers, capable of carrying a PA load of 2,000 kg each. It also serves as a working platform to slide in the outer keder canopy. The towers are positioned under the roof structure, ensuring a fully enclosed rooftop.The AR65 is designed, engineered, and manufactured to allow for re-scaling in width with 4m or 4.14m bays without adding any new material. Optional PA wings, back storage, and loading docks are available. Contact us for details on the integrated scaffolding stage and decks.
