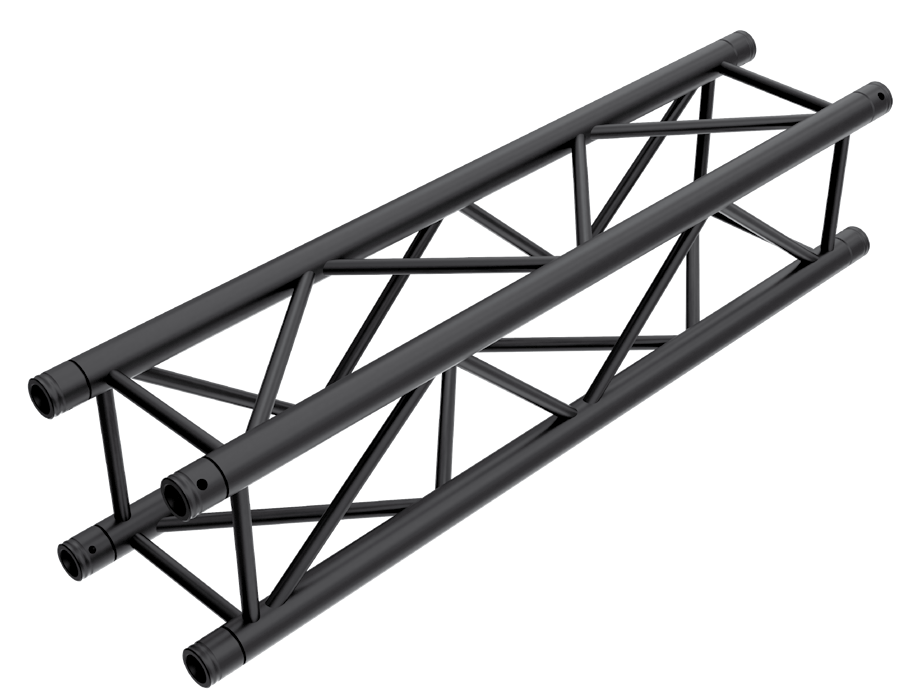

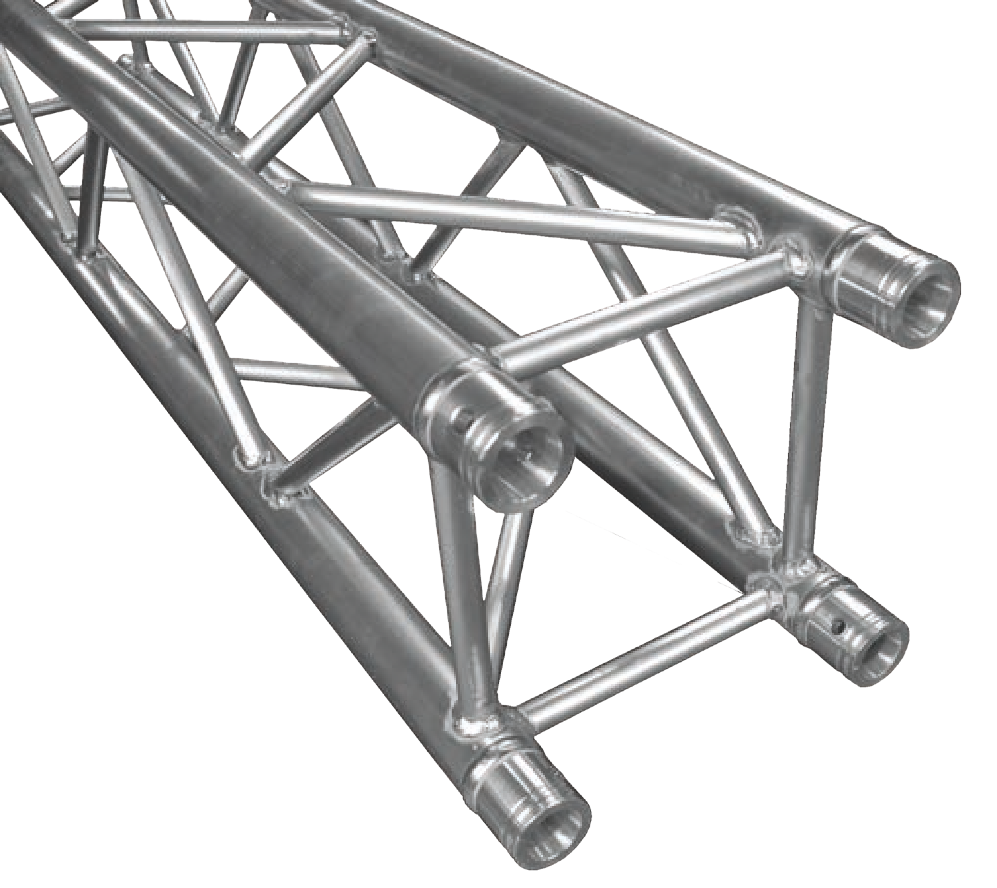

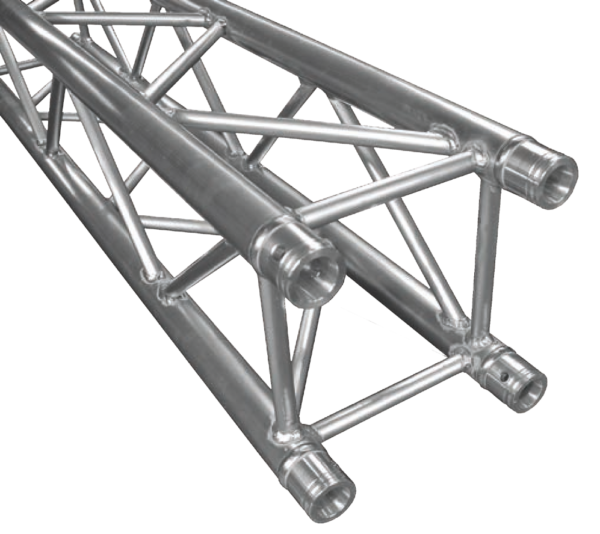

SS-35
SS-35 has proven to be the ultimate multipurpose truss for many of our users around the globe. The straight elements lend themselves perfectly for spans up to 14m or as standard tower elements.
SS-35 is using the 3 mm wall thickness in the maintube which assures durability and extra strength.
Specifications SS35
| Specification | Value |
|---|---|
| Height | 350 mm |
| Width | 350 mm |
| Pin Position | Diagonal |
| Main Tube | 50 x 3 mm |
| Braces | 25 x 2 mm |
| Material | EN AW-6082 T6 |
SIZE: 350*350/3mm thickness. Main tube is ⌀ 50mm*3mm,vice tube is ⌀ 30mm*2mm,Brace is ⌀ 25mm*2mm,the normal length for one pc is 1m-3m,it can be stretched to 14m with max load 530kg
| Span In Meter (m) | Point Load (kg) | Distributed Load (kg/m) |
|---|---|---|
| 4 | 554 | 277 |
| 5 | 513 | 205 |
| 6 | 483 | 161 |
| 7 | 455 | 130 |
| 8 | 428 | 107 |
| 9 | 405 | 90 |
| 10 | 380 | 76 |
| 11 | 341 | 62 |
| 12 | 318 | 53 |
| 13 | 286 | 44 |
| 14 | 265 | 37 |
